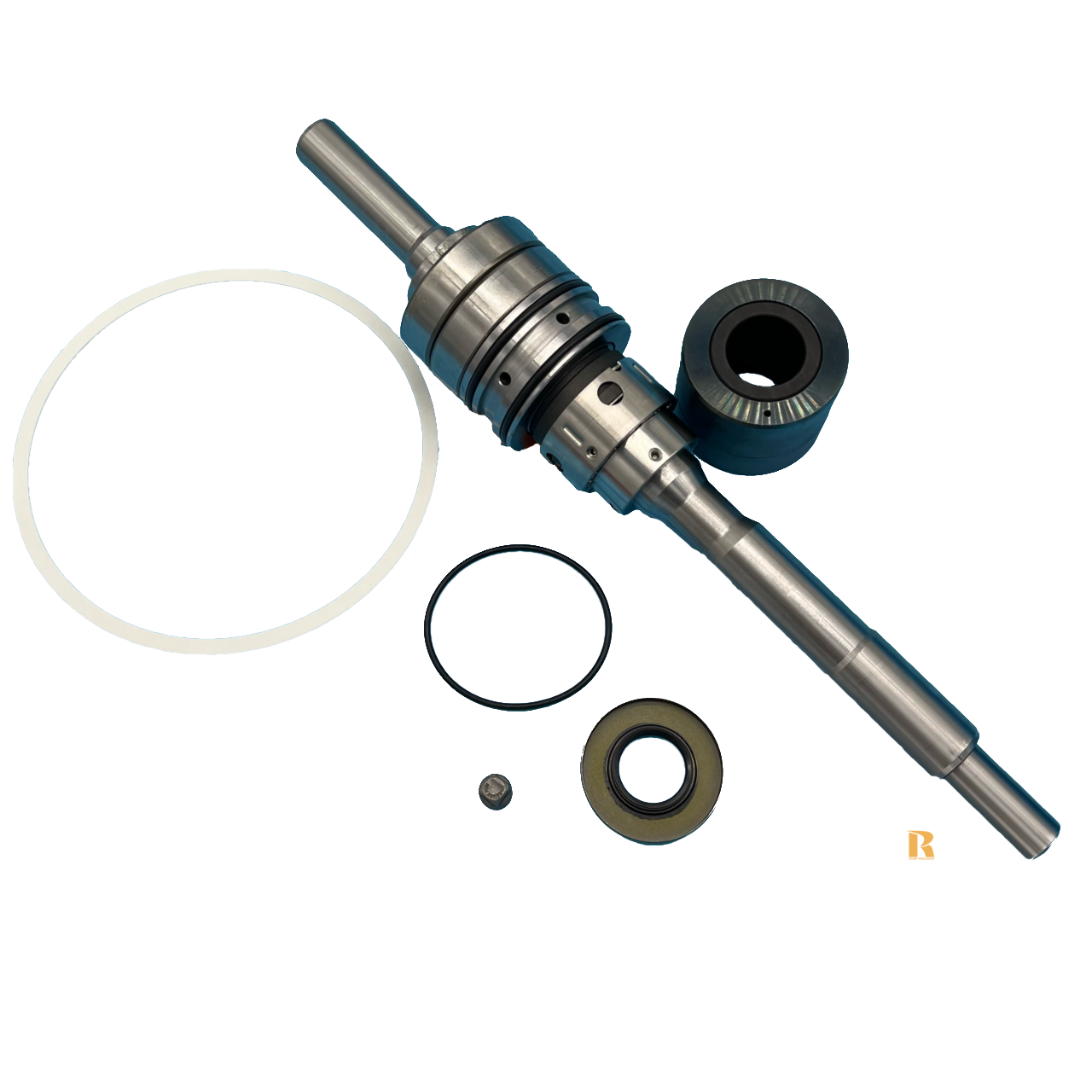

Dean 8.5" RWA-4166 Shaft Repair Kit
Dean shaft repair kit for 8.5" RWA-4166 pumps. Use this kit to rebuild the rotating element—shaft, mechanical seal, thrust bearings, grease seals, gaskets, and related hardware—so the pump returns to reliable service.
Fits Dean RWA-4166 pump sizes: 1x3x8.5, 1.5x3x8.5, 2x3x8.5, 3x4x8.5, and 4x6x8.5.
This kit includes:
| Item No. | Part Number | Description | Qty |
|---|---|---|---|
| 13 | 1762480 | MECHANICAL SEAL GLAND | 1 |
| 25A | 9010169 | THRUST BEARING | 2 |
| 29 | 1138149 | PUMP SHAFT | 1 |
| 31 | 9212509 | BEARING LOCKNUT | 1 |
| 31A | 9656512 | BEARING LOCKWASHER | 1 |
| 75 | 9714519 | SNAP RING | 1 |
| 76 | 9603036 | GREASE SEAL FRONT | 1 |
| 76A | 9603013 | GREASE SEAL REAR | 1 |
| 77 | 9155917 | CASING GASKET | 1 |
| 77B | 9710635 | BEARING END COVER GASKET | 1 |
| 95A/B | 6765945 | MECHANICAL SEAL | 1 |
| 180 | 6010100 | RADIAL BEARING CARTRIDGE | 1 |
| 325 | 9710582 | O-RING | 2 |
| 6322595 | RA GREASE PACKAGE | 1 | |
| 9454009 | PIPE PLUG END COVER | 1 | |
| 9454027 | PIPE PLUG | 2 |
Fits these pumps
For Dean RWA4166 pumps — 8.5" sizes (1x3, 1.5x3, 2x3, 3x4, 4x6 × 8.5).
