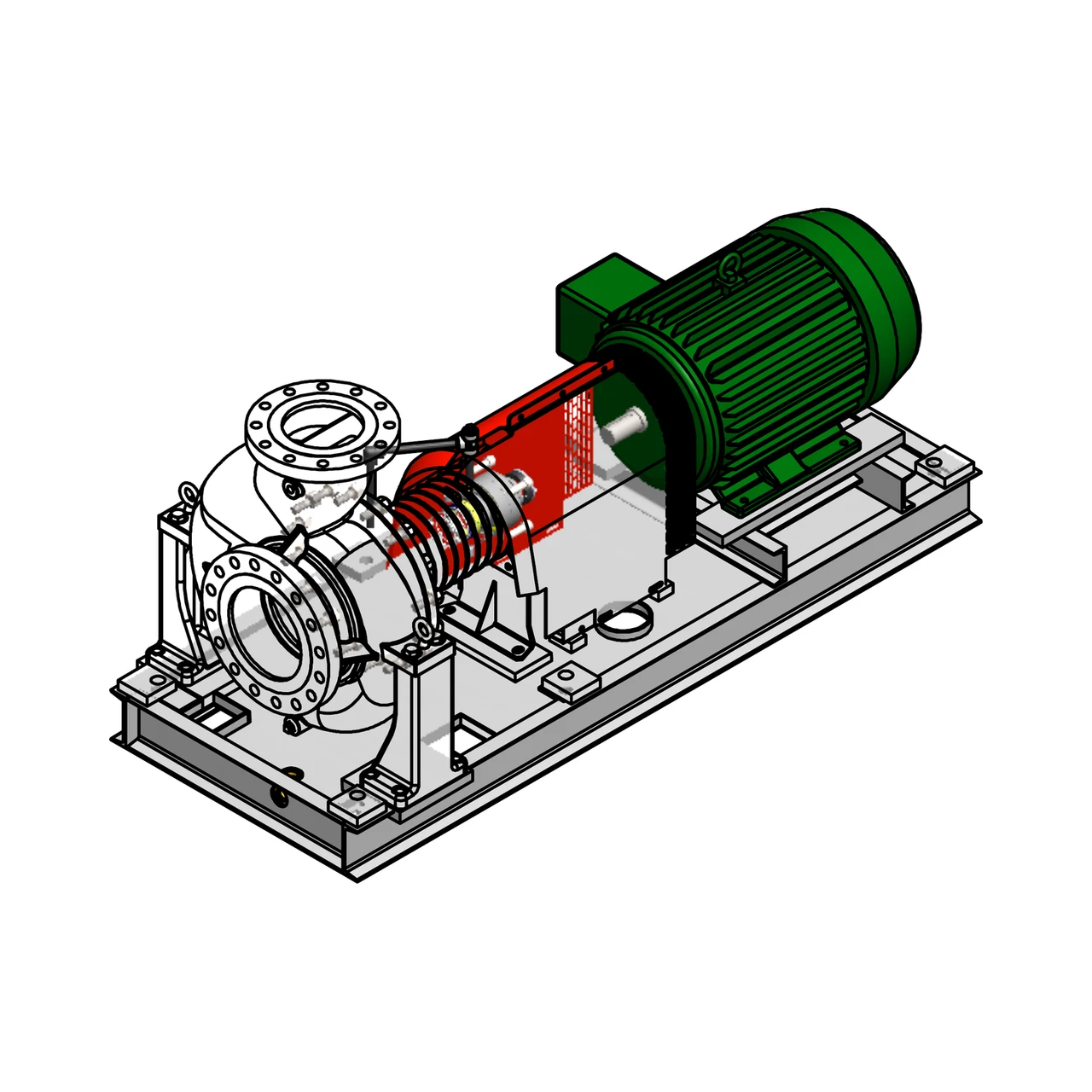

Dean RA3246 Heavy-Duty Air-Cooled Thermal Liquid / Hot Oil Pump
The Dean RA3246 is the largest, highest-capacity frame in the air-cooled Dean RA Series, engineered for high-flow thermal fluid, hot oil, and heat-transfer systems operating up to 650°F (343°C) without external cooling water. Available in 6x8x15.5 and 8x10x15.5 sizes with standard ASME Class 300 Raised Face flanges and a heavy pedestal-mounted casing support, the RA3246 delivers refinery-grade reliability while eliminating cooling-water piping, jacket fouling, and utility costs.
Key Engineering Highlights:
- Air-Cooled to 650°F (No Cooling Water Required): Integral cast cooling fins and a shaft-driven stainless-steel radial cooling fan maintain low bearing housing temperatures in continuous 650°F heat-transfer service.
- Heavy-Duty Pedestal-Mounted Casing: Foot-supported volute casing (Class 22 Ductile Iron) with ASME B16.5 Class 300 RF suction and discharge flanges (125 Ra spiral serrated finish) resists thermal pipe loads up to 3,340 lb-ft.
- Dimensionally Interchangeable with Dean R4240 / R480 Series: Drops into existing water-cooled Dean R4240 / R480 (6x8x15.5 and 8x10x15.5) footprints (31.50" shaft-end to discharge centerline, D = 15.00" shaft centerline height) to eliminate cooling water lines.
- Heavy-Duty Shaft & Bearing System: Stiff 2.375" coupling shaft (L3/D4 = 1.5) supported by an inboard pumpage-lubricated carbon/416 SS radial sleeve bearing (#180, P/N 6010120) and a grease-lubricated duplex pair of 7314 BG angular-contact ball thrust bearings (#25A, P/N 9010272).
- API Baseplate & Motor Packages (324T–449T): Configurable as a bare shaft pump or complete pump-set mounted on a heavy-duty welded steel API Baseplate with Drip Rim, paired with a Dodge D-Flex or Falk T-Spacer coupling and Premium Efficient TEFC motor (25 HP to 200 HP, including 150 HP 1800 RPM 445T IEEE 841).
Dimensional & Hydraulic Comparison (6x8x15.5 vs. 8x10x15.5):
| Specification / Dimension | RA3246 6x8x15.5 (SKU: RA3246 6x8x15.5) | RA3246 8x10x15.5 (SKU: RA3246 8x10x15.5) |
|---|---|---|
| Suction × Discharge Nozzle Size (Class 300 RF) | 8" Suction × 6" Discharge | 10" Suction × 8" Discharge |
| Full-Size Impeller & Factory Trim Range (No Charge) | 15.50" Max (Trimmable to 11.50" in 1/8" steps, ISO G2.5 Balanced) | 15.50" Max (Trimmable to 12.50" in 1/8" steps, ISO G2.5 Balanced) |
| Bare Pump Length (CP = L + Y) — Print RA4002 | 38.50" (L = 31.50", Y = 7.00") | 39.50" (L = 31.50", Y = 8.00") |
| Shaft Centerline Height (D) / Baseplate Height (HG) | D = 15.00" (Bare) · HD = 21.25" on 6.25" API Base | D = 15.00" (Bare) · HD = 21.25" on 6.25" API Base |
| Centerline to Discharge Face (X) & Casing Width (A1 / A2) | X = 17.50" · A1 = 17.75" · A2 = 14.25" | X = 21.00" · A1 = 20.00" · A2 = 15.50" |
| Coupling Shaft Diameter (U) & Keyway | 2.3750" / 2.3745" Dia. · 5/8" × 5/16" Keyway | 2.3750" / 2.3745" Dia. · 5/8" × 5/16" Keyway |
| Bare Pump Weight (IOM Fig. 9) | 1,023 lbs (464 kg) | 1,075 lbs (488 kg) |
Standard Materials of Construction & Operating Limits (Class 22):
| Component / Parameter | Dean RA3246 Standard Specification |
|---|---|
| Casing (#5) & Bearing Housing (#26) | Ductile Iron ASTM A395 / A536 (Class 22) with Integral Cooling Fins |
| Impeller (#3) | Cast Iron ASTM A48 (Enclosed, Factory Single-Plane Balanced to ISO G2.5) |
| Pump Shaft (#29, P/N 1138155) | 416 Stainless Steel (11–13% Cr), Ground & Polished |
| Mechanical Seal (#95A/B, P/N 6765590 / 6765591) | John Crane Type 21 — Silicon Carbide Stationary Seat vs. Carbon Rotary, Viton Elastomers |
| Casing Gasket (#77, P/N 9156173) | 15.5" Spiral-Wound / Flexible Graphoil High-Temperature Gasket |
| Max Temperature & Working Pressure | 650°F (343°C) Air-Cooled · 350 PSIG Max Working Pressure (525 PSIG Hydrotest) |
| Direction of Rotation | Counter-Clockwise (CCW) Viewed from Coupling End |
Stocked OEM Replacement Parts & Engineering Support for Dean RA3246
Order genuine Dean RA3246 replacement components online or contact our application engineers for complete rotating-element overhaul kits (P/N 6138174):
